A New, Alternative Method for Joining Metals Without Welding

| Author / Editor: Dr. Boris Pawlowski / Daniel Richter

When joining metals together, the usual method is welding. This, however, leads to changes in their structure as well as their appearance. Researchers have now developed an alternative that is able to join aluminium alloys with each other and with polymers.

Related Companies

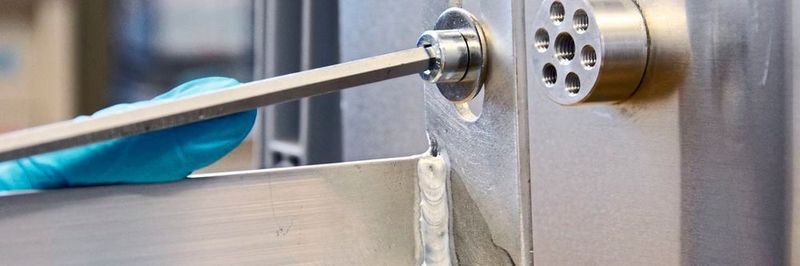

A traditional welding seam – as seen in the foreground – is not produced when joining the aluminium flange and the aluminium wall as seen in the background.
( Source: Siekmann / CAU )

Welding is still the standard technique for joining metals. However, this laborious process carried out at high temperatures is not suitable for all applications. Now, a research team from the “Functional Nanomaterials” working group at Kiel University, together with the company Phi-Stone AG from Kiel, has developed a versatile alternative to conventional welding and gluing processes. Based on a special etching process, it enables aluminium and aluminium alloys to be joined with each other as well as with polymers, forming a durable and strong joint.

The prototype of this mobile joining unit was presented at Hannover Messe in April. The team has announced that it plans to commence mass production in the near future, after receiving feedback from customers.

When welding, components are joined by locally melting them at the connection point. However, the high temperatures required for this procedure influence the material in the so-called heat-affected zone, causing structural as well as optical changes. The process also requires special safety precautions and appropriately qualified staff.

Permanent Connection Even in Hard-to-Reach Places

In contrast, the process developed by the Kiel University research group, led by Professor Rainer Adelung, not only spares the materials to be joined, but it is also easier and more flexible to use, even in hard-to-reach places such as corners or upside down on the ceiling. In just a few minutes, metals can be permanently connected with each other, but also with polymers.

The team envisages areas of application such as ship, aircraft or vehicle production. The process is particularly well suited for subsequently attaching components to existing constructions, for example, in the interiors of ships or cars, explained Adelung regarding possible applications. “The high temperatures of welding will destroy surfaces that have already been treated and painted, for example. Our process, on the other hand, works at room temperature without special protective measures,” said Adelung.

The Kiel University research group and its partner, the Kiel start-up Phi-Stone, presented their mobile prototype “Metalangelo” at Hannover Messe 2018.
The Kiel University research group and its partner, the Kiel start-up Phi-Stone, presented their mobile prototype “Metalangelo” at Hannover Messe 2018.
( Source: Siekmann / CAU )

“Metalangelo” Opens up to New Combinations of Materials

To be able to connect metals, the Kiel research team uses its “nanoscale sculpturing” process to roughen the surface with a precise electro-chemical etching procedure, so that a fine, rectangular hook structure is created on the micrometre level. When two of these treated surfaces are interlocked using an adhesive, a strong joint is created that is very difficult to break.

“If something breaks at all, then perhaps the actual adhesive or the material itself, but not the connection point,” said Ingo Paulowicz, board member of Phi-Stone. “The nanoscale sculpturing process thus opens up completely new possibilities in the field of joining technology, but also entirely new combinations of materials, such as aluminium with copper or with silicone. This could be interesting for medical technology, for example,” added Adelung.

In order to use this joining process in industry, the Kiel University team and Phi-Stone have now developed a mobile and easy-to-use prototype called “Metalangelo”. Using customised etching cells produced via 3D printing, metal surfaces can be precisely processed at room temperature. Together with their first clients, they want to include customer requirements and develop the prototype to market-readiness. Two patents have already been registered in this regard.
