Composite Materials Development of a CFRP Aluminum Hybrid Wheel Succeeded

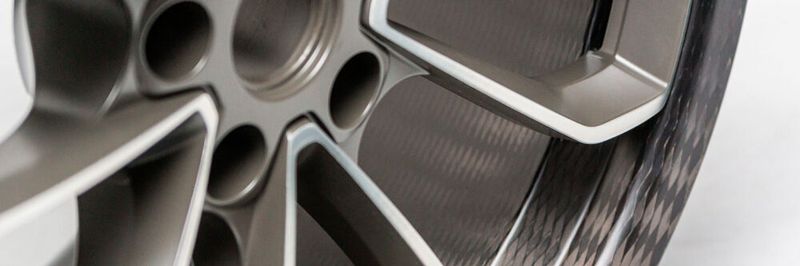

Thyssenkrupp Carbon Components and the Hyundai Motor Europe Technical Center developed fully tested 19“CFRP hybrid wheels. The project was executed using Thyssenkrupp’s braiding technology when producing the rim well. It is completed with a forged aluminum wheel centre through a newly developed, extremely robust, yet almost invisible fixing and sealing technology.
The project consisted of eight phases, covering a complete development from the design phase to the final testing on the vehicle. In order to validate the new architecture, the wheels underwent an extensive testing program. In addition to the numerous standard wheel testing procedures, a range of tests specifically addressing the raw material CFRP was executed. HMETC then verified the advantages in performance, efficiency and NVH behaviour (noise, vibration, harshness) on the test rig as well as during tests with real vehicles. The prototype wheels underwent a series of real-life tests, where for example the thermal resistance was tested during a downhill passage at the Großglockner mountain pass. The performance advantages resulted in better acceleration and shorter braking distance as well as reduced tyre rolling noise, which is a clear gain of comfort for the passengers. The development of the CFRP hybrid wheels was successfully completed and HMETC validated the Thyssenkrupp technology for unrestricted use for series production.
Dr Jens Werner (CEO, Thyssenkrupp Carbon Components): ‘The cooperation with the Hyundai Motor Europe Technical Center has undoubtedly been a success, as we convinced another OEM of the advantages and quality of our braided CFRP wheels. The HMETC constitutes a valuable partner for us, which has validated the quality of our products through comprehensive testing. We are looking forward to the series production of those jointly developed CFRP wheels in the near future.‘
Stephane Ringenbach (Head of Engineering Design, HMETC): ‘The collaboration with Thyssenkrupp Carbon Components and the development of the CFRP hybrid wheel were very successful. We fulfil all our specifications while the major weight reduction significantly increases the vehicle performance. We have experienced Thyssenkrupp Carbon Components as an excellent partner for new technology development with deep knowledge of composite materials. Thyssenkrupp Carbon Components is a supplier which is able to support from early design phase to final product including testing capabilities and quality standards. The direct preforming by braiding – from fibre to rim preform – enables the next level in reduction of composite manufacturing costs. We are looking forward to the next steps to bring these emotional wheels onto the road.’
